Product type：TFT
Show contents：1920x1080

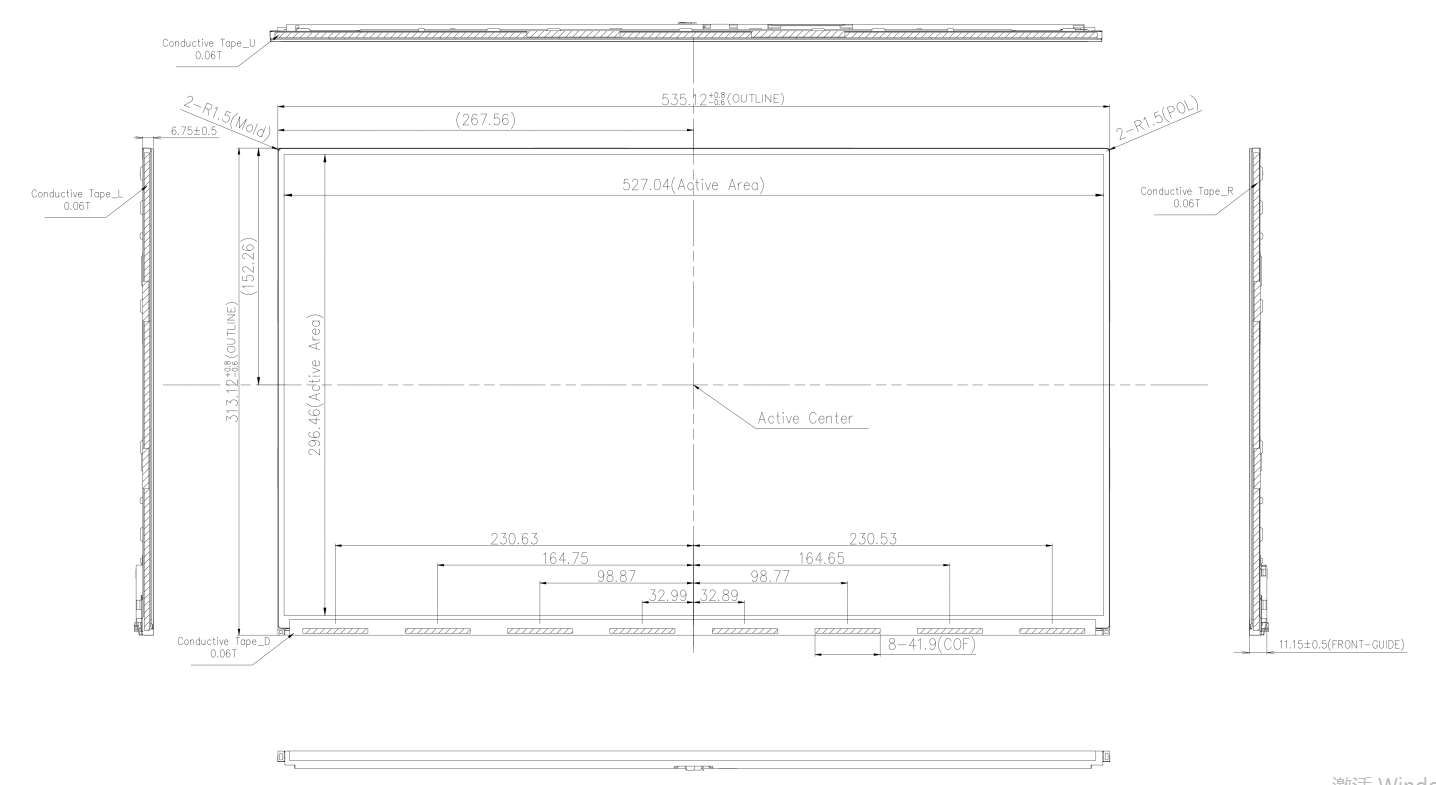

Outline size(mm) ：535.12 (H) × 313.12 (V) × 11.15 (D)
Size of View Window(mm)：23.8
Display size(mm) ：23.8
Effective size(mm)：527.04 (H) × 296.46 (V)
Product application：industrial control systems
Visual angle：IPS
Interface mode：HI/VGA
Special instructions：Anti-static ESD 8KV
Working temperature：0~50℃
Power supply voltage：12V
MV238FHM-K11 is a color active matrix TFT LCD module with Advanced In-cell Touch
System. This module has a 23.8 inch diagonally measured active area with FHD resolutions
(1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection , higher color and
touch function.
This product has a touch function, the touch driver IC is SW52028, and the 10-point touch mode brings users a smooth and smooth touch experience. The display content is rich and realistic, and we have also configured buttons for users to adjust parameters, and users can complete the debugging through simple instructions.
Given the wide display area and good performance of this model, it is very popular in industrial control environments. This model is currently without a shell, and we also have a version with a shell for the same size model. Users can also customize the shell according to actual usage needs.
