HTM-H032A05-MCU-V1 3.2-inch TFT LCD display module: Unlock high-definition vision with a stable connection

This 3.2-inch TFT display module works together with 240x320 high resolution and 450cd/m2 uniform brightness to present a delicate and vivid picture quality experience. IPS wide viewing angle technology breaks through the direction limitation, and the content is always clear and discernible no matter from which angle you watch. The core ST7789 driver chip ensures smooth operation of the picture, and the 2.8~5.0V wide voltage is compatible with the mainstream MCU platform. Combined with the wide temperature tolerance of -30℃ to +80℃, it can easily cope with harsh scenes such as industrial control, portable devices and outdoor display.

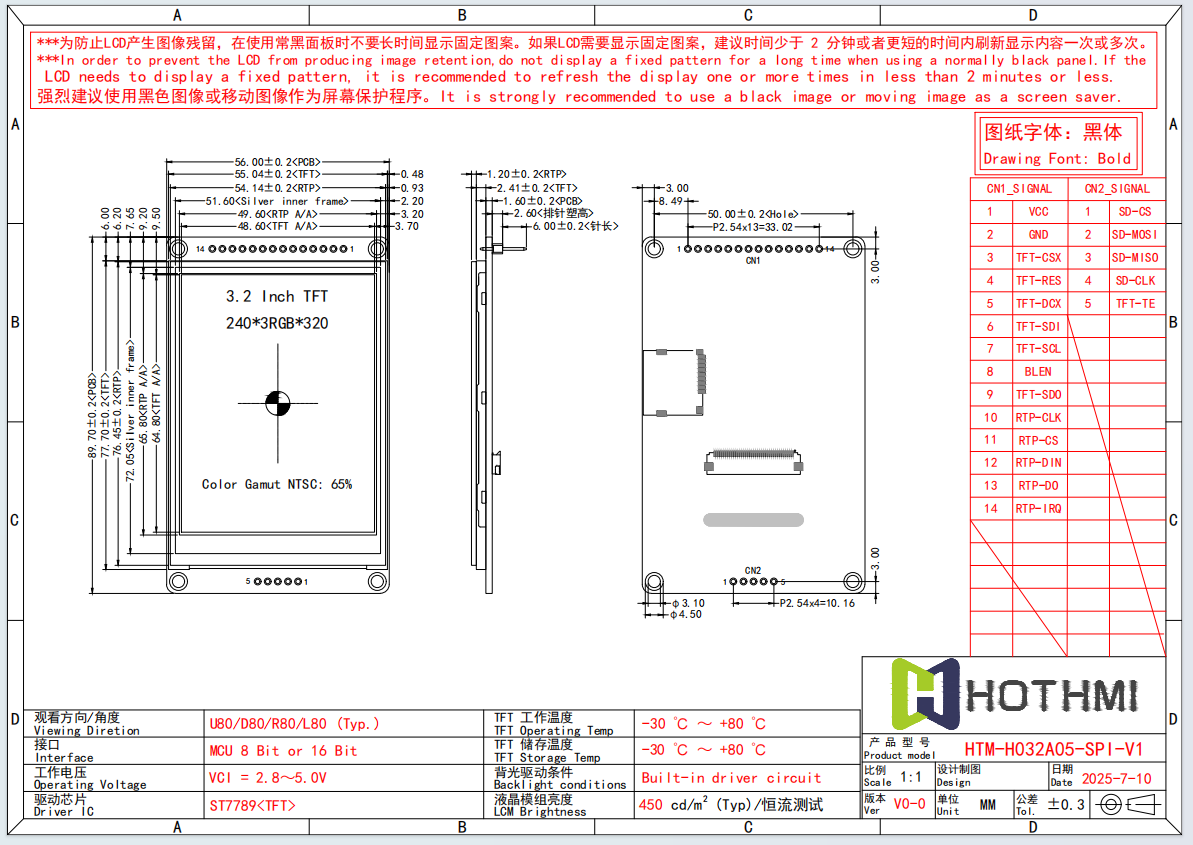

The metal pin design is a revolutionary upgrade of the connection experience: 6.0mm gold-plated pins are precisely arranged with P2.54 standard spacing, completely saying goodbye to the tedious welding and the pain points of the fragile soft cable. The plug-and-play feature greatly reduces the assembly error rate, and the repeated plug-in and unplug still maintains stable contact, which is particularly suitable for development and debugging, modular equipment and other scenes that require frequent replacement. The slim body (only 2.20mm locally) and rigid pins provide double protection, and the exclusive connector for the driver board can realize the precise and fast disassembly and assembly of the display and the driver board. The four positioning holes are designed more considerately, and the whole machine can be fixed with screws to give it a stable mechanical structure, making the hardware integration as reliable as a rock.

If the MCU interface is not the best choice, the same series provides a flexible alternative with an SPI interface version. Engineers can also choose the TFT-H032A05QVIST6N40 display with FPC cable to develop a driver board by themselves, or upgrade to the 3.2-inch resistive touch TFT-H032A3QVTST3R40. We also support deep customization: from the cover plate shape, FPC cable length and shape, touch solution (resistance/capacitance), communication interface configuration, to the surface AG/AR/AF anti-glare treatment, all can be customized on demand. The entire series of products complies with ROHS environmental protection standards, and empowers your creativity with modular thinking-from connection stability to visual expression, injecting high-reliability display genes into innovative devices.
